OCTAVE SPX-018

Portable Or Mobile X-rays Systems

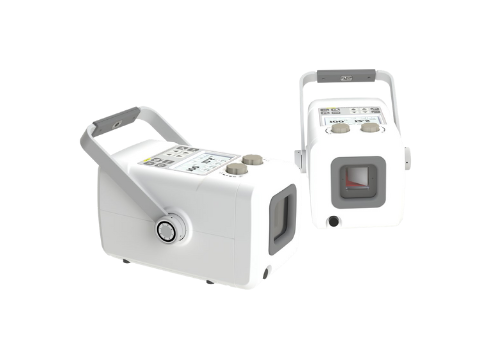

1.8kW Portable X-ray Generator

Meet the SPX-018, a next-generation portable X-ray generator designed to combine powerful imaging performance with outstanding mobility.

Weighing only 7.2 kg, it’s ideal for hospitals, clinics, and field applications that demand flexibility without compromising image quality.

Whether in a hospital ward, mobile clinic, or emergency setting, SPX-018 delivers dependable imaging performance wherever it’s needed.

Empower your radiography workflow with efficiency, accuracy, and portability - all in one compact system.

Input Power	Battery Type: 54.5 Vdc, 2A (used with Adaptor)
Output Power	1.8 kW
KV range	40kV ~ 90kV (1kV Step) (±8%)
mAs (mA) Range	0.32mAs ~ 100mAs (10~30mA) (±20%)
X-ray Tube	Max voltage (kV): 90kV Max current (mA): 40mA Target angle (°): 20°
Battery	Battery capacity: 48 Vdc/2000Ah Battery charger: NPB-120-48XLR (54.5Vdc/2A)
