OCTAVE Mini90
Portable Or Mobile X-rays Systems
OCTAVE Mini90

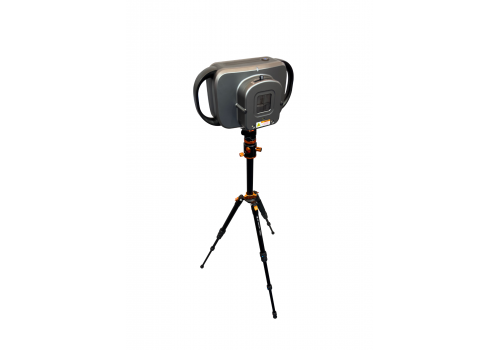

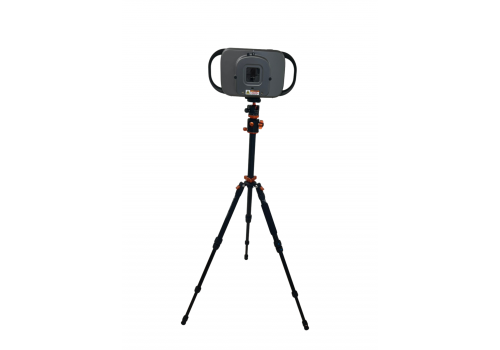

COMPACT and RELIABLE PORTABLE X-RAY
800W / Lighter than 4 KG

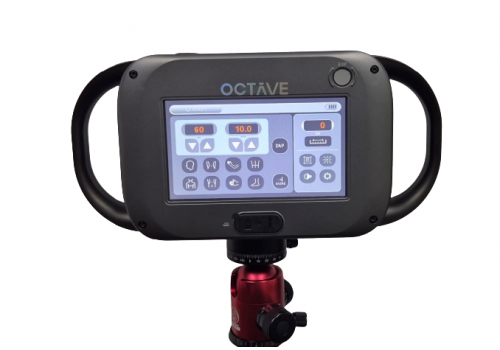

Efficient and user-friendly workflow is provided through a 7” LCD touch screen, featuring automatic SID measurement.The ability to enable making ready and X-ray exposure using a wireless remote control, along with all functions, can be utilized through a smartphone app.
| Max. Output | 90 kV / 10 mA, 800W |
|---|---|
| Voltage Range | 40 - 90 kV |
| mA Range | 6 -10 mA |
| mAs Range | 0.32 - 20 mAs |
| Focal Spot | 0.8 mm |
| Collimator Lamp | LED |
| Battery | 2000 mAh |
| X- RAY Field Size | 43 x 43 cm / 100 cm SID |
| Number of Exposure | Approx. 150 |
| Charging Time | Apporx. 1 - 1.5 Hour |
| AC Power Adaptor | 100 - 240 VAC, 50 / 60 Hz |
Portable X-ray Generator
×
❮
![]()
❯
