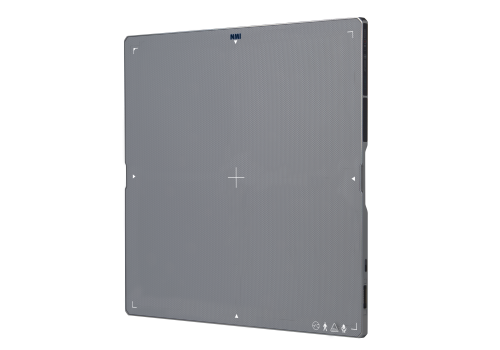

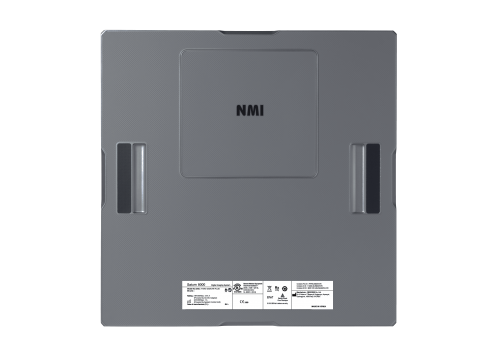

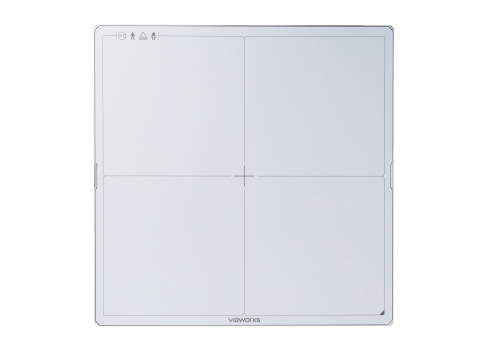

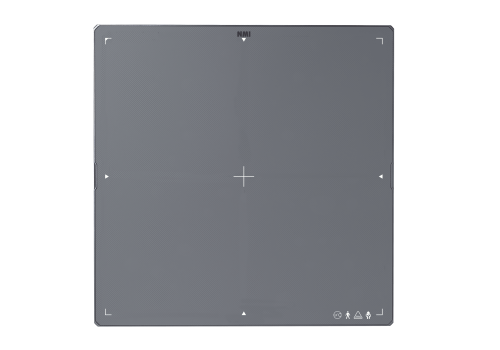

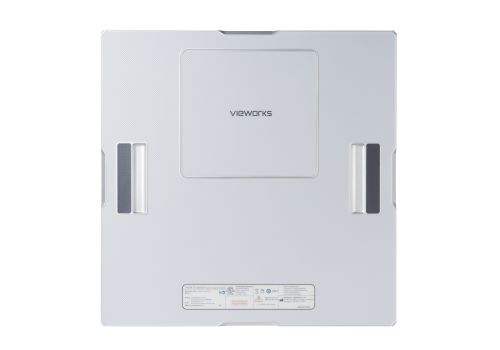

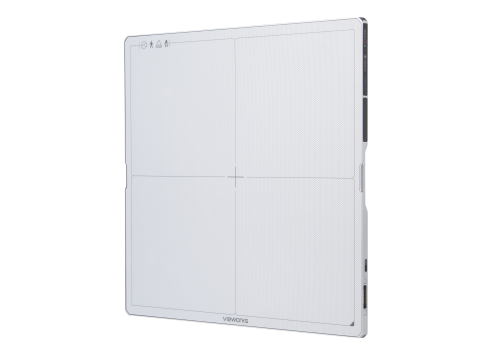

4343V-Wireless Flat Panel Detector

Wireless Flat Panel Detector for General Radiography

Image Size: 43.0 ㎝ x 43.0 ㎝

Superior Image Quality

  • High MTF & DQE
  • Pixel Pitch : 140 ㎛
  • Advanced Imaging Processing Technology - PureImpact™

Easy Upgrade

  • Anytime™:
    Vieworks' proprietary AED (Automatic Exposure Detection)
    technology with reliable performance
  • InsideAP™ : fast wireless communication (802.11n/ac)
  • ISO 4090 : same size as a film/CR cassette

Excellent Durability

  • IP67 Dust and Water Resistance:
    1) Protects against harmful dust
    2) Protects from immersion in water with a depth of up to 1 m for up to 30 min
  • Temperature Stability:
    0 degree Celsius to 40 degree Celsius
  • Strict Reliability Test :
    1) 100 cm drop-tested
    2) load limit of 400 kg

Real Mobility

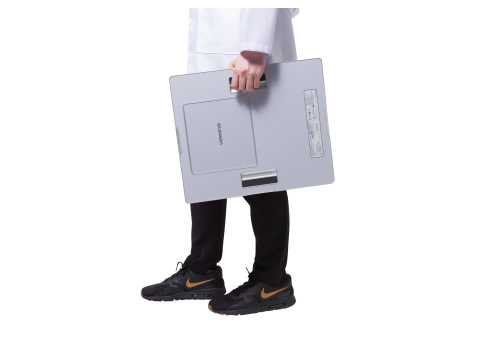

  • Greater Portability:
    llight weighted (one battery: 2.95 kg or 6.5 lbs, two batteries: 3.15 kg or 6.94 lbs)
    and built-in handles to easy carry
  • Convenient Charging :
    a variety of charging methods

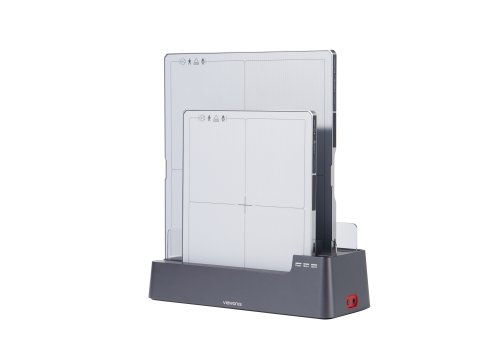

    (standard USB-C interfaces, magnetic tether connectors, cradle)
  • Long Lasting Battery :
    up to 16 hours of long operation

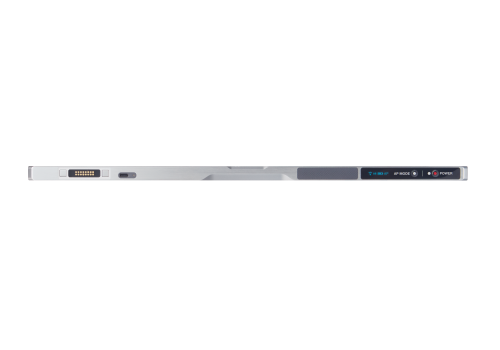

  • OLED Status Screen :
    easy check on battery charge level,
    wired/wireless connection mode, sleep mode status
Model Name FXRD-4343VAW /
FXRD- 4343VAW PLUS
Technology a-Si TFT
Scintillator CsI
Pixel Pitch 140μm
Spatial Resolution 3.5 lp / mm
Pixel Matrix 2560 x 3072 pixels
Image Size 43.0cm x 43.0 cm
Grayscale 16 bits
Image Acquisition Time 3 S
Recommended Cycle Time 4 S
Data Interface Gigabit Ethernet
IEEE 802.11 n / ac
X-ray Voltage Range 40-150 kVp
Operating Environment 0°C to 40 °C
5% to 90% RH
(non-condensing)
Power Consumption Normal: Max. 24W
Charging: Max. 80W
