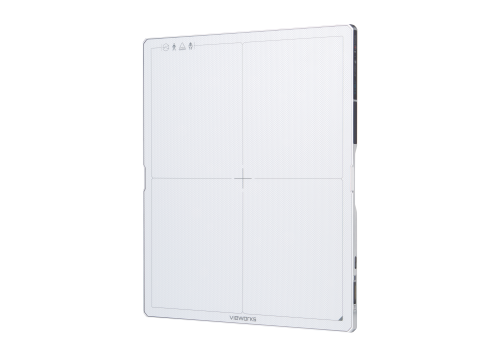

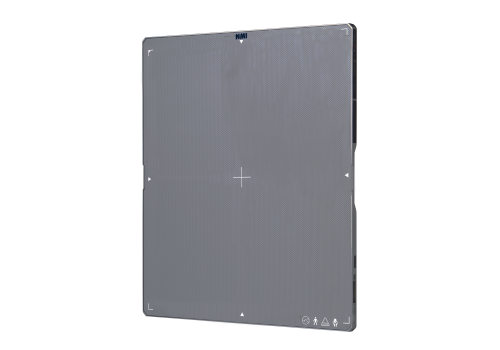

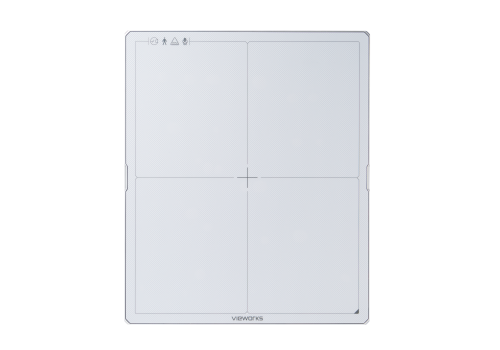

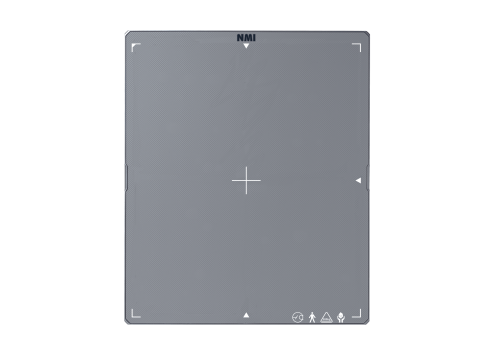

3643V-Wireless Flat Panel Detector

DR Detectors Systems

Wireless Flat Panel Detector for General Radiography

Image Size: 35.8 ㎝ x 43.0 ㎝

Superior Image Quality

Easy Upgrade

Anytime™:
Vieworks' proprietary AED (Automatic Exposure Detection)
technology with reliable performance
InsideAP™ : fast wireless communication (802.11n/ac)
ISO 4090 : same size as a film/CR cassette

Excellent Durability

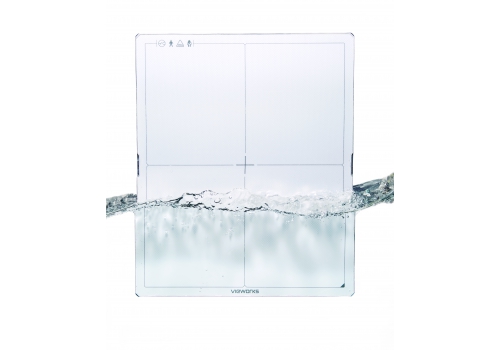

IP67 Dust and Water Resistance:
1) Protects against harmful dust
2) Protects from immersion in water with a depth of up to 1 m for up to 30 min
Temperature Stability:
0 degree Celsius to 40 degree Celsius
Strict Reliability Test :
1) 100 cm drop-tested
2) load limit of 400 kg

Real Mobility

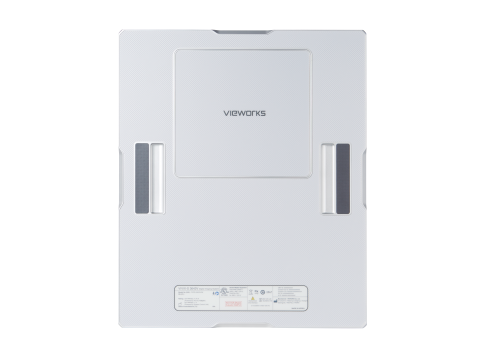

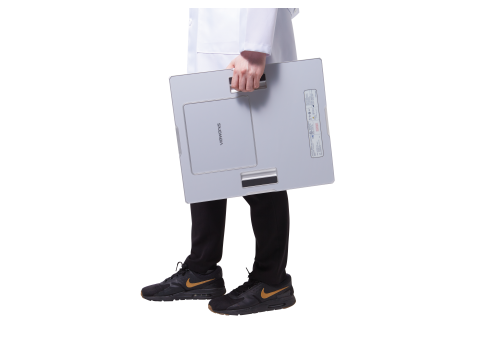

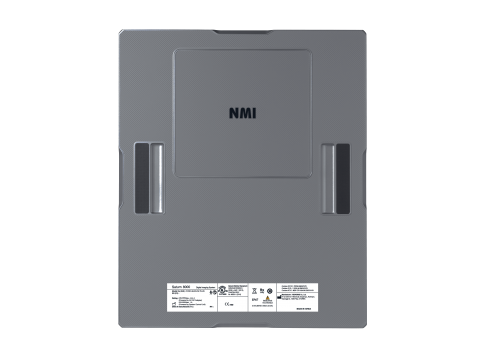

Greater Portability:
llight weighted (one battery: 2.95 kg or 6.5 lbs, two batteries: 3.15 kg or 6.94 lbs)
and built-in handles to easy carry
Convenient Charging :
a variety of charging methods

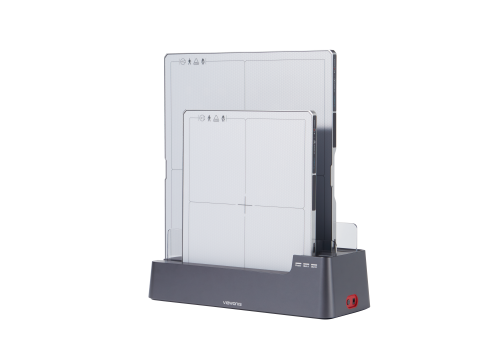

(standard USB-C interfaces, magnetic tether connectors, cradle)
Long Lasting Battery :
up to 16 hours of long operation
OLED Status Screen :
easy check on battery charge level,
wired/wireless connection mode, sleep mode status

Model Name	FXRD-3643VAW / FXRD-3643VAW PLUS
Operating Environment	0°C to 40°C 5% to 90 % RH ( non-condensing)
Power Consumption	Normal: Max. 15 W Charging: Max. 50W
Technology	a-Si TFT
Scintillator	Csl
Pixel Pitch	140 μm
Spatial Resolution	3.5 lp / mm
Pixel Matrix	2560 x 3072 pixels
Image Size	35.8 cm x 43.0 cm
Grayscale	16 bits
Image Acquisition time	3 S
Recommended Cycle Time	4S
Data Interface	Gigabit Ethernet IEEE 802.11 n / ac
X-ray Generator Interface	DR Trigger Mode / AED Mode
Dimensions	38.4 cm x 46.0 cm x 1.5cm
Weight	2.95 kg ( one batter) 3.15 kg (two batteries)
Battery	Lithium lon 3400mAh x2 14 h (standby) *2,850 images at a 15-second cycle
Dust and Water Resistant	IP67
X-ray Voltage Range	40-150 kVp
Operating Environment	0°C to 40°C 5% to 90% RH (non-condensing)
Power Consumption	Normal: Max. 15W, Charging: Max. 50W
